Volume Rendering: Going boldly where all have gone before…

Published on 2009-08-13 by Mark VandeWettering

Image from CT data downloaded from http://graphics.stanford.edu/data/voldata/

Image from CT data downloaded from http://graphics.stanford.edu/data/voldata/

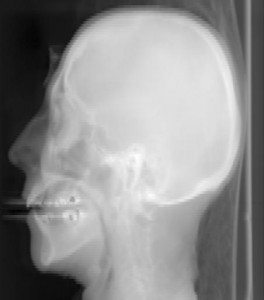

Okay, this is a bit gruesome, but I’ve been dusting off some old papers that I never really understood on Fourier Volume Rendering, and testing my understanding by writing some simple code that takes in a volume dataset and uses the fast Fourier transform to convert it into simulated X-ray pictures. The data set that this picture was generated from was downloaded from

this webpage at Stanford, and consists of CT scan data of a cadaver. The basic code works! Given a bit more work, I should be able to do arbitrary orthographic views.

The math for all this is described quite admirably by Tom Malzbender’s paper Fourier Volume Rendering.

Addendum: Here is the raw data slices:


httpv://www.youtube.com/watch?v=UrwnuEtNUKc

Addendum2: Here is a link to some more interesting volume datasets.

Addendum3: Here’s my attempt at rotation. It doesn’t really work right yet. I think I understand why.
